PRODUCTION SPECIFICATION

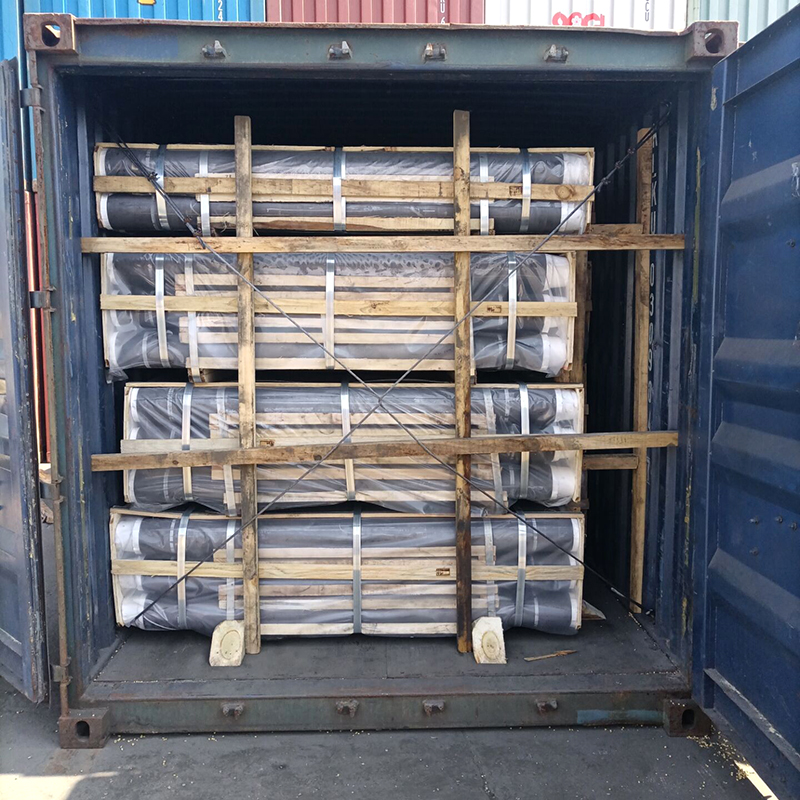

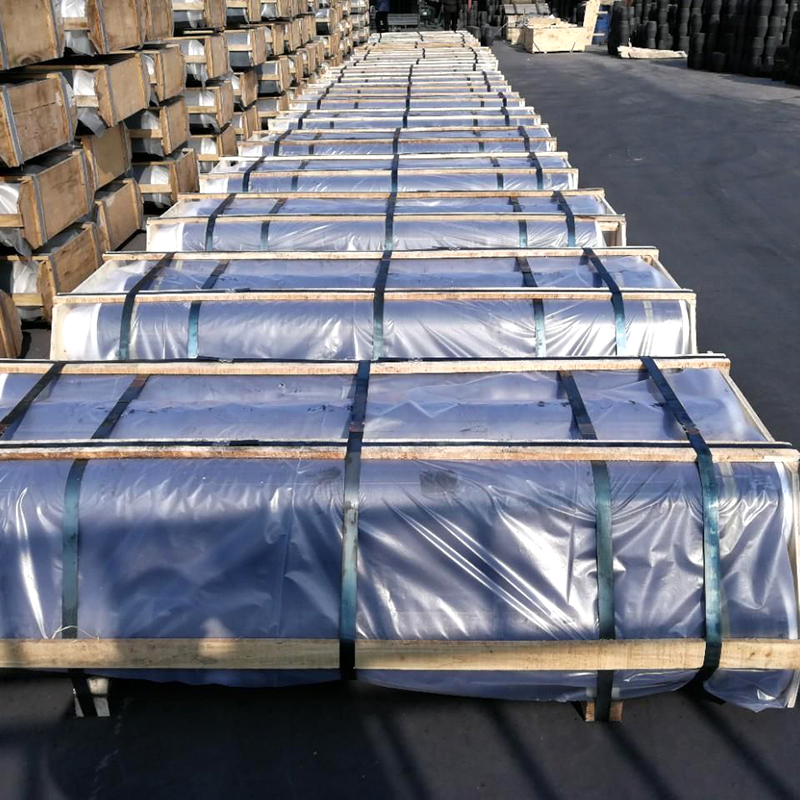

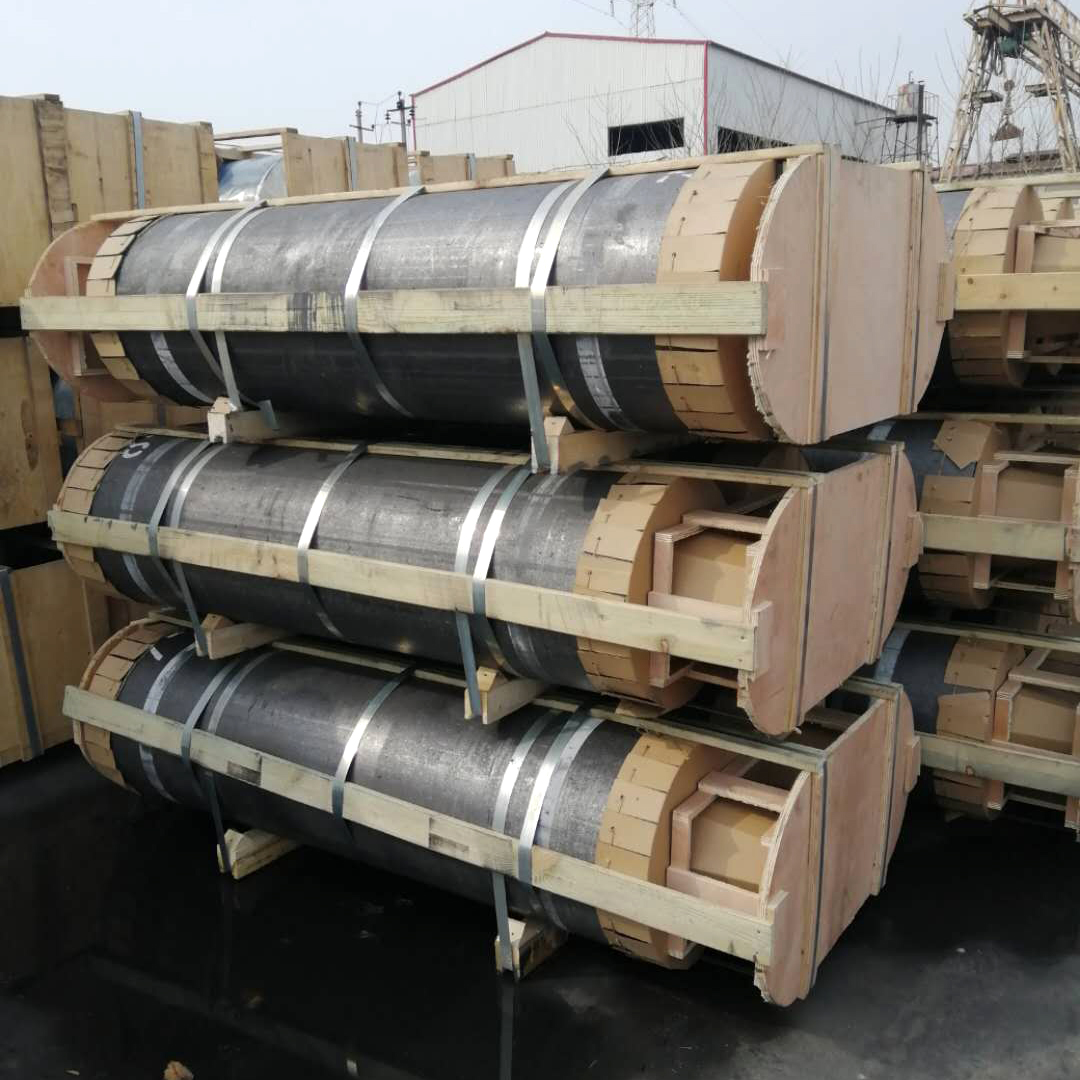

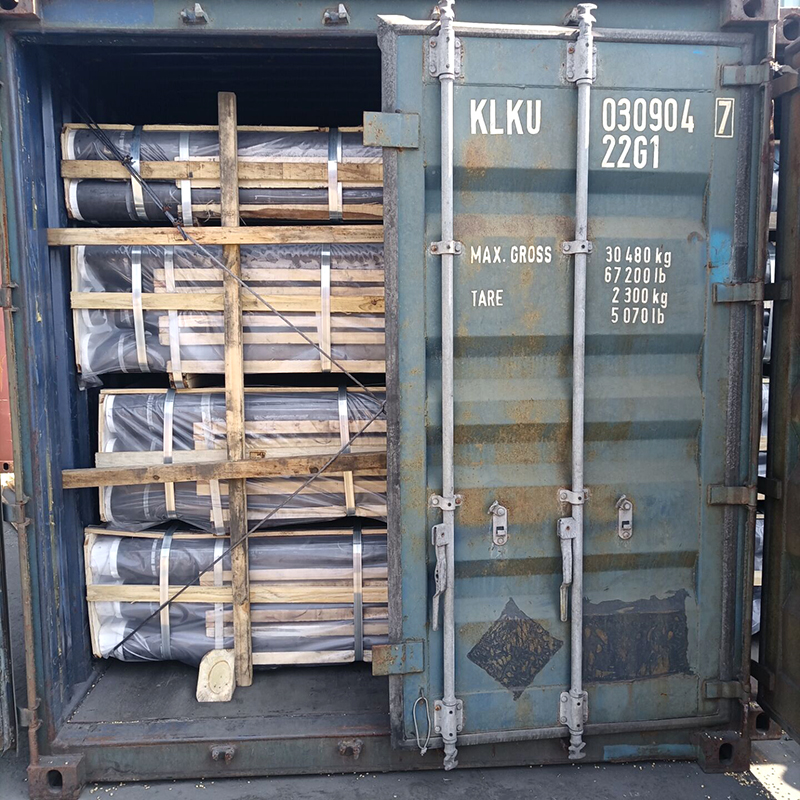

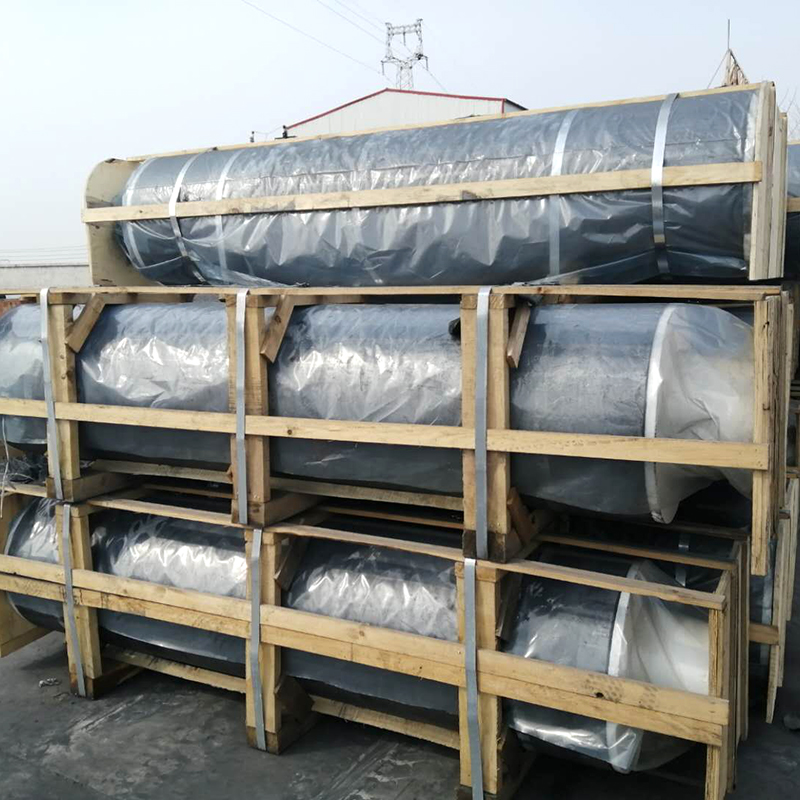

HP graphite electrode 400mm
Type: We can supply High purity graphite electrode.Regular power, high power and ultra-high power graphite electrode can be supplied.Fine grained structral graphite electrode and oxidation resistant coating graphite electrode are provided.Any size could be requested by the customer.
Application:Mainly used for the electric arc furnace to smelt the molten steel and used for the refining furnace such as AOD VOD LF furnaces in the steel and non-ferrous metal metallurgy industry.
Advantage:Graphite electrode is more and more widely used in the iron and steel industry.It makes less pollution and saves more power,it's good for our environment.The graphite electrode has long working-life,as it needn't to be changed often,that reduce the labor indensity of the works and avoid much danger.
RP (Regular Power) Graphite Electrode Standard: YB/T 4088-2000 |
Item | Unit | Diameter |
Φ75-Φ300 | Φ350-Φ450 | Φ450-Φ500 |
Electric resistivity≤ | μΩm | 4.5-8.0 | 4.5-8.0 | 4.5-8.0 |
Flexure strength≥ | Mpa | 8.0-18.0 | 8.0-18.0 | 8.0-18.0 |
Modulus of elasticity≤ | Gpa | 8.5-12.0 | 8.5-12.0 | 8.5-12.0 |
Bulk Density≥ | g/cm3 | 1.60-1.80 | 1.60-1.80 | 1.60-1.80 |
CTE(100-600℃) ≤ | x10-6/℃ | 2.2-2.8 | 2.2-2.8 | 2.2-2.8 |
Ash Content ≤ | % | 0.3 | 0.3 | 0.3 |
HP (High Power) Graphite Electrode Standard: YB/T 4089-2000 |
Item | Unit | Diameter |
Φ100-Φ400 | Φ450-Φ500 | Φ550-Φ600 |
Electric resistivity≤ | μΩm | 3.8-6.2 | 3.8-6.2 | 3.8-6.2 |
Flexure strength≥ | Mpa | 11.0-20.0 | 11.0-20.0 | 11.0-20.0 |
Modulus of elasticity≤ | Gpa | 8.0-13.0 | 8.0-13.0 | 8.0-13.0 |
Bulk Density≥ | g/cm3 | 1.65-1.85 | 1.65-1.85 | 1.65-1.85 |
CTE(100-600℃) ≤ | x10-6/℃ | 1.5-2.0 | 1.5-2.0 | 1.5-2.0 |
Ash Content ≤ | % | 0.3 | 0.3 | 0.3 |
UHP (Ultra-High Power) Graphite Electrode Standard: YB/T 4090-2000 |
Item | Unit | Diameter |
Φ300-Φ400 | Φ450-Φ500 | Φ550-Φ700 |
Electric resistivity≤ | μΩm | 3.0-5.5 | 3.0-5.5 | 3.0-5.5 |
Flexure strength≥ | Mpa | 12.0-25.0 | 12.0-25.0 | 12.0-25.0 |
Modulus of elasticity≤ | Gpa | 16.0 | 16.0 | 16.0 |
Bulk Density≥ | g/cm3 | 1.70-1.90 | 1.70-1.90 | 1.70-1.90 |
CTE(100-600℃) ≤ | x10-6/℃ | 0.8-1.4 | 0.8-1.4 | 0.8-1.4 |
Ash Content ≤ | % | 0.2 | 0.2 | 0.2 |
